THERMOFORMER

THERMOFORMER

The large heating chamber accomodates big formers together with the material to heat them up, and then form them without pressure.
The mouldable material is then secured on the former and cooled down afterwards.

The Robust and Professional Heating Stations! For all thermoformable materials up to +230°C!

Rejected shapes of certain materials can be re-heated and “flattened” again to reuse them for another trial.
The heating station has a downwards opening hatch to give access to the pull out heating trays. Fully welded industrial design in a sturdy and torsionally rigid steel construction.
The Thermoformer can be customised with up to 3 heating trays.
The sophisticated CAS-convection heating guarantees a gentle and entirely uniform heating process. There are no problems with discolouring of sensitive materials or sticking of materials onto the heating trays..

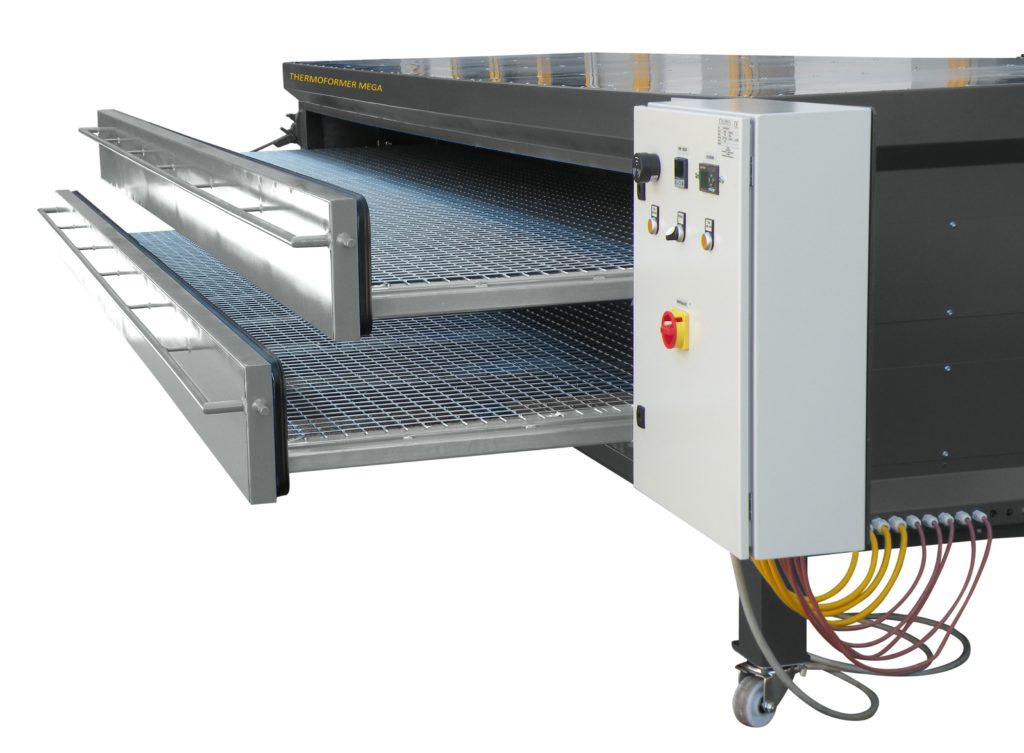

ThermoformerMega mit geöffneten Schubladen

Thermoformer features

Thermoformer_geöffnet_Universalformers
heating chamber

takes big formers and for annealing

hatch

downwards opening

control unit

heat protected on the side

heating tray

very sturdy and non-corrosive

Thermoformer advantages

High-end technology and solid machine building

  • advanced CAS-convection heating (Controlled Air Stream),developed and refined out of the challenging foil/film heating.
  • JUMO precision control for variable temperature setting up to +230 °C
  • heating of all material thicknesses without special adjustment
  • heating chamber for annealing work pieces
  • high load of the heating tray, also when heated
  • non-corrosive, smooth running and easily removable heating tray
  • energy saving through excellent insulation and adapted heating power
  • maintenance-friendly
  • long lasting, robust machine - made in Austria for life!

Heating materials:

  • heating of all traded thermoforming plastics, such as: ABS, PMMA (Plexiglas, Perspex, Lucite), PET-G (Vivak), PE, PS, PP, PVC-U, PC (Makrolon),
  • heating of special thermoformables, such as: UPM-GRADA, RESYSTA, thermoformable fabrics (felt), NFPP (natural fibre PP), formable compact laminate boards (Abet, Crown), etc.
  • heating of solid surface materials, such as: CORIAN; HIMACS; KERROCK; HANEX; STARON; MISTRAL; AVONITE; TRISTONE; VELSTONE; WILSONART; GETACORE; RAUVISIO; VARICOR; PLEXICOR; MEGANITE; KRION; LIVINGSTONE; MARLAN; EOS; FORMICA; MYSTERA, etc. FORMICA; MYSTERA, etc.

Simple operation

  • heat protected controls, clearly arranged and self-explanatory
  • build in timer with alarm
  • optional *Variable heating steps program; comes with a SIEMENS TOUCH PANEL
  • optional *Sensor guided program, heating control directly on the material
  • ergonomic adjusted working height of the heating trays
  • enables effortless placing and removing of the material 
Thermoformer_Ansicht_Seite_Universalformers

Thermoformer

Large heating chamber with high heating power!

Thermoformer optional with 1, 2 or 3 heating trays

heating tray
heating surface L x W: 2000×1150 mm
overall dimensions L x W x H: 2700x1800x1430 mm

heating chamber 230°C, 16kW
overall dimensions L x W x H: 2200x1260x550 mm

working height 900 mm

In combination with the vacuformer vacuum presses – heating + forming!

heating tray
heating surface L x W: 2600×1250 mm
overall dimensions L x W x H: 3200x1800x1430 mm

heating chamber 230°C, 16kW
overall dimensions L x W x H: 2700x1260x550 mm

working height 900 mm

In combination with the vacuformer vacuum presses – heating + forming!

For a whole length of solid surface material boards!

heating tray
heating surface L x W: 3800×1250 mm
Gesamtmaße LxBxH: 4400x1800x1430 mm

heating chamber 230°C, 32kW
overall dimensions L x W x H: 3900x1260x550 mm

working height 900 mm

In combination with the vacuformer vacuum presses – heating + forming!

Of course, the THERMOFORMER can be manufactured according to your individual requirements, e.g. several pull-out grids, variable sizes, different feeding devices.

Modell with drawer version
ThermoformerMega mit geöffneten Schubladen
Modell with hatch
Thermoformer Lade geöffnet

Benefits when used in combination with a Vacuformer Vacuum Press

  • diversified heating and pressing organisation for a flexible production
  • arranging of the heating and pressing surface in accordance with your production demand
  • adapting the working height of the heating station and the vacuum press
  • feeding of up to 3 heating trays for a higher production
  • placing of the heating station and the vacuum press according to the production flow
  • combination with Vacuformer presses of any size
Thermoformer Ansicht von vorne

Thermoformer the Industrial Heating Station! Future proof your business today!
